N.CLASSIC 468

468

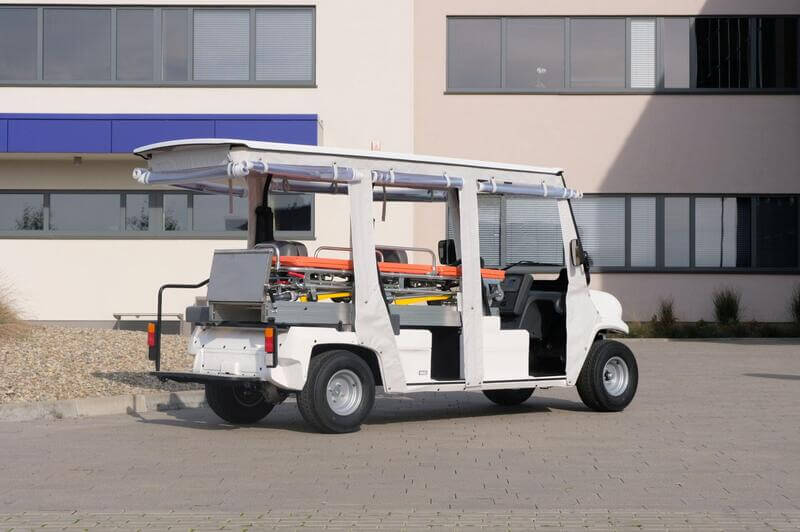

The newest model of Melex electric vehicle ambulance. It is distinguished by a completely new design, which on the one hand refers to the first Melex models, and on the other hand, emphasizes the modernity of applied solutions. The double A-frame suspension significantly improves the comfort of the ride and the maneuverability. A completely changed shape in the rear emphasizes the solidity of the whole construction and gives it a modern and original look. A standard model is equipped with a stretcher, which you can lay down, as well as a battery watering system, 3-point seat belts, and a holder of a defibrillator. Optionally the model can be equipped with a front tubular bumper, orange or blue warning stroboscope lamps, weather enclosure, or wheel covers.

N.CLASSIC N.CLASSIC N.CLASSIC N.CLASSIC N.CLASSIC N.CLASSIC N.CLASSIC N.CLASSIC
Ambulance - 3-passengers and a stretcher
Vmax 33 kph Numărul de locuri 3

Echipament standard

  • 3 single seats and stretcher on wheels with foldable brackets;
  • 8 pcs of T-125 with capacity 240 Ah in discharging cycle 20h;
  • 5.0 kW AC motor;
  • battery charger on-board 48V;
  • wheels 195/55-10 or 20,5 x 8.0-10;
  • gear ratio 20:1;
  • system of refilling water in batteries 48V;
  • top;
  • glass windshield with wiper and washer;
  • rear lamps LED;
  • LED daylights;
  • system of integrated indicators;
  • galvanized frame;
  • hydraulic drum brakes;
  • full light installation;
  • 12V socket on the dashboard;
  • 3-point seat belts;
  • mirrors;
  • holder for defibrilator;
  • standard body color: white RAL 9016;
  • flat grey seats.

Echipament adițional

  • UPHOLSTERY: profiled seats and seatback, covers for roll bar;
  • COLOR EDITION: painted elements (glove compartment, rear fender, cup);
  • lithium batteries with battery charger 2.3 kW;
  • lithium batteries with battery charger 7.2 kW;
  • front tubular bumper;
  • battery charger on-board 48V;
  • 8 pcs of T-145 batteries with capacity 260 Ah in discharging cycle 20h;
  • stroboscope blue or orange lamp;
  • light beam with sound signal (on rolling);
  • certified stretcher (assembled instead of standard ones);
  • wheel covers 10 inches;
  • closed gloves compartment and cup (grey color);
  • weather enclosure;
  • forward drive buzzer;
  • front heated windshield;
  • different color of RAL palette (except reserved colors);
  • different color of the top.

Available colors of COLOR EDITION: light and dark green, orange, red, blue, beige, black.
